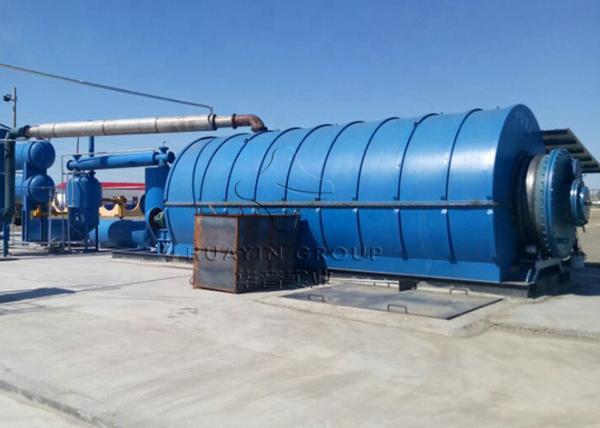

Large Profit Waste Plastic Pyrolysis Plant To Fuel Oil With CE
Certificate
The plastic waste that can be seen everywhere seriously pollutes
our living environment, how to properly dispose of this plastic
waste is increasingly important. Huayin waste plastic pyrolysis
plant can recycle the waste plastic to fuel oil,carbon black and
gas through pyrolysis technolgy , the whole process is
environmental friendly and bring you large profit .
Oil ratio
Different plastic waste material has different oil yield.
| Raw materials | Oil ratio | Raw materials | Oil ratio |
| PP (Microwave oven food box/yogurt bottles, ect.) | 50%-75% | ABS(engineering plastic) | 40% |
| PS(fast food boxes/instant noodle boxes) | 50%-75% | Leftovers of paper | Wet 15-20%,Dry 60% |
| PE(plastic film/plastic wrap) | 50%-75% | House garbage | 35%-50% |
| Plastic cable | 80% | Plastic bags | 50% |
Our advantage
- High efficiency . The feeding port of the pyrolysis reactor is
1400mm , so the waste material don’t need pretreatment , they can
be put into the pyrolysis reactor directly with the auto feeder
machine.
- High stability . The rollers are engineered under feeding port and
oil outlet port which are external from heating area to bring
perfect rotating balance and longer service life.
- Energy saving : Non-condensable gas will go back to the heating
system for second burning as heating material , saving your heating
fuel.
- High oil yield : Larger condensation area to ensure sufficient
condensation of oil gas into liquid oil.
- Eco-friendly: The stainless steel deduster is filled with ceramic
filters inside , which brings it strong dust adsorption capacity
and good dedusting effect.
- High safety level : Equipped with Alarm , auto pressure releasing
device , and anti back fire device , vacuum pump to ensure the
machine working smoothly.
Working process
1.Loading the waste material into the pyrolysis reactor with the
auto feeder machine .
2.Heating pyrolysis reactor and producing oil.
3.The exhaust gas which can not be cooled to liquid oil will be
recycled to heat the reactor. Smoke will be purified through strong
and powerful 4.dust removal device.
5.Cooling the pyrolysis reactor after oil production is finished.
6.Discharging carbon black and steel wire.
Specification
| Model | Reactor size | Capacity | Power | Landing area(m) |
| HY-10kg | HY1880*800 | 10kg/batch | 250W | 1*4 |
| HY-1T | HY1500*3000 | 1 T/batch | 13.5KW | 8*20 |
| HY-5T | HY2200*5500 | 5 T/batch | 29.4KW | 10*35 |
| HY-7T | HY2200*7500 | 7 T/batch | 29.4KW | 10*35 |
| HY-8T | HY2600*6600 | 8 T/batch | 29.4KW | 12*35 |
| HY-9T | HY2800*6000 | 9 T/batch | 29.4KW | 12*35 |
| HY-10T | HY2800*6600 | 10 T/batch | 32KW | 15*35 |
| HY-15T | HY2800*8000 | 15 T/batch | 34KW | 15*35 |
Installation cases
HUAYIN equipment has been exported to over 80 countries including
Romania, Hungary, Turkey, Ecuador, Guatemala, Haiti, Mexico,
Peru,Canada , USA,Jordan, UAE, Lebanon, Kuwait, Chile , Poland ,
England , Thailand, Greece, Mexico , Benin , Indonesia , India ,
Singapore ,Russia etc.
Our company
Established in 1993, Xinxiang HUAYIN Renewable Energy Equipment
Co., Ltd is an environmental protection plant manufacturer
integrating product R&D, design, production, marketing,
installation and after-sales. HUAYIN Energy enjoys a technical and
service team composed of more than 30 experienced engineers and a
number of invention patents, CE, SGS, ISO9001 and ISO14001
certifications.
