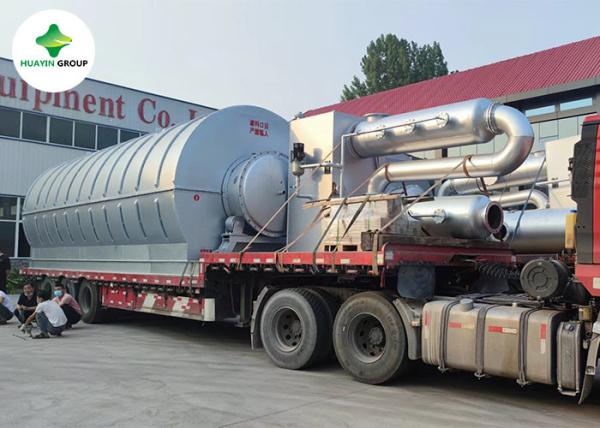

3 Ton Portable Waste Plastic Pyrolysis Machine 40ft Container
Pyrolysis Plant
Product description
With the rising public awareness for environmental protection,
Waste tire/plastic recycling has attracted more and more attention
all over the world. Huayin pyrolysis technology can convert waste
tires, rubber, and plastic scrap into fuel oil, carbon black, steel
wire and combustible gas. The plant has the advantages of
environmental friendly, high autoamtion, high oil yield and
quality, and longer service life.
Specification
| Model | HY-05 | HY-08 | HY-10 | HY-15 |
| Raw material | Waste rubbers/tyres/plastic |
| Output product | 45% fuel oil, 30% carbon black, 10% steel wire, 10%-15% syngas |
| Daily Handling capacity | 5 tons | 8 tons | 10 tons | 12 tons |
| Machine dimension(mm) | D2200*L5500 | D2600*L6600 | D2800*L6600 | D2800*L8000 |
| Landing Area | 200m2 | 250m2 | 300m2 | 350m2 |
| Working pressure | Normal pressure |
| Main engine rotating speed | 0.4R /min |
| Power | 15KWH |
| Cooling Mode | Circle Water |
| Heating Mode | Direct |
| Oil Yield | 40%-50% |
| Noise dB (A) | <=85 |
| Working Mode | Batch type |
Main advantages
A. Safety. We treat safety as the first important thing in
production.
1. Two devices to avoid backfire in production: oil-water separator
and anti-back fire device.
2. Vacuum device makes the reactor work under ordinary pressure or
negative pressure.
3. Temperature monitoring and Pressure gauge to monitor the
pressure. If the pressure goes above a certain level, the bell will
alarm and the safety valve will release the pressure automatically.
B. Environmental protection
1. The flue gas (caused by burning fuel to heat the reactor) will
be purified and cooled by a powerful ceramic packing dust removal
device, then can be released into the air through the chimney.
2. Carbon black will be discharged out in sealed condition to avoid
pollution.
C. Energy saving
1. The flame path is designed as a spiral so that the quantity of
heat can be fully used.
2. The syngas is recycled to heating furnace for burning, thus
saving your heating fuel.
3. The insulation cover is formed by 3 layers: steel plate, rock
wool, and refractory cement. Excellent thermal insulation effect
helps save fuel.
Output product and usage
| Output Products | Application |
Fuel Oil (50%-75%) | 1. Used as the heating material and sell it to cement factories,
glass factories, ceramic factories, electric power factories, steel
making factories, boiler factories, etc.
2. Used in heavy oil generator for electricity generation.
3. Deep process it into diesel oil with our distillation plant,
color, and smell removal system, the final oil can be used in
trucks, tractors, etc. |
| Carbon Black (30%-35%) | Slag for construction. |
| Flammable Gas (8%-10%) | 1. Recycled into the furnace to heat reactor instead of
coal/wood/oil/natural gas.
2. Storage the excess gas to restart the next batch. |
FAQ
1. What is the price of one complete set of waste pyrolysis plants?
The price of the pyrolysis plant depends on the configuration, and
capacity, please contact us to get the latest quotation.
2. What payment methods do you accept?
A: We can accept T/T, L/C, Western Union.
3. Does waste pyrolysis plants pollute the environment?
With a powerful de-dusting system, the smoke will be
desulfurization and purified before being discharged out. SGS
emission reported provided.
4. How many countries have your machines been exported to?
HUAYIN equipment has been exported to over 80 countries including
Romania, Hungary, Turkey, Slovakia, Ecuador, Guatemala, Haiti,
Mexico, Peru, Canada, Jordan, UAE, Lebanon, Italian, Chile, Poland,
England, Thailand, Greece, Mexico, Benin, Indonesia, India,
Singapore, Russia, etc.
5. How long will it take to get the machine?
The delivery time is 15 -25 working days.
