Waste Pyrolysis Reactor Plastic To Fuel 5ton Plastic Pyrolysis
Plant For Producing Diesel
Product description
Nowadays, with human exploitation and environmental degradation,
natural energy especially oil energy is becoming less and less, on
the contrary, municipal solid wastes are becoming more and more.

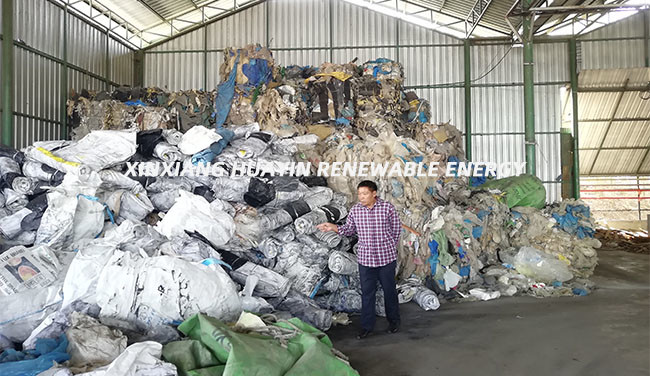

Huayin waste plastic pyrolysis reactor machines can convert the
normal daily wastes like plastic bags, and rubber scraps into fuel
oil, which can be used as heating fuel in many industrial fields.
Output product and usage
Fuel oil (pyrolysis oil) is widely used in industries, such as
steel factories, heavy oil generators, cement factories, boiler
heating, etc. Or deep process it into diesel oil with our
distillation plant, color, and smell removal system, the final oil
can be used in trucks, tractors, etc.
Carbon black can be made into pellet or briquette as heating
material.
The incondensable gas is recycled to heat the pyrolysis reactor,
saving energy.
Specification
| Model | HY-05 | HY-08 | HY-10 | HY-15 |
| Raw material | Waste rubbers/tyres/plastic |
| Output product | 45% fuel oil, 30% carbon black, 10% steel wire, 10%-15% syngas |
| Daily Handling capacity | 5 tons | 8 tons | 10 tons | 12 tons |
| Machine dimension(mm) | D2200*L5500 | D2600*L6600 | D2800*L6600 | D2800*L8000 |
| Landing Area | 200m2 | 250m2 | 300m2 | 350m2 |
| Working pressure | Normal pressure |
| Main engine rotating speed | 0.4R /min |
| Power | 15KWH |
| Cooling Mode | Circle Water |
| Heating Mode | Direct |
| Oil Yield | 40%-50% |
| Noise dB (A) | <=85 |
| Working Mode | Batch type |
Main features
Safety: Alarm, auto pressure releasing device, anti backfire device,
vacuum pump to ensure the machine working smoothly.
Oil-water separator: Its water sealing design ensures that oil and
gas are separated and combustible gas can not return to the
reactor.
Energy-saving:
The inner reactor body and outside insulation cover have good
airtightness, avoiding heating loss and saving fuel.
The combustible gas that cannot be further cooled down into fuel
oil will be recycled to the furnace for heating the reactor,
maximizing resource utilization.
The cooling water adopts a circulating mode, which is pollution-free, no discharging, and recyclable.
Non-pollution: Adopt screw conveyor discharging device, discharge carbon black in
sealed condition, no pollution and save labor and time.
Fast installation: All of the condensing parts have been installed together before
delivery from the factory, saving installation time and ensuring
welding quality.
Auto feeder machine to feed raw material automatically, save labor and time.
Packing and shipping
Packaging details | 1*40FR and 1*40HQ for 10 tons 2*40 HQ for 5 tons Weight: about 30tons All goods are packed with export standard package to make sure no damage during transportation. |
| Detail details | about 15 days after receiving deposit. |
