Waste Plastic To Bio Diesel And Petro Machine
Product description
HUAYIN waste tyre pyrolysis plant can convert waste tyre/rubber to
useful products . The project is beneficial to environment and
profitable.

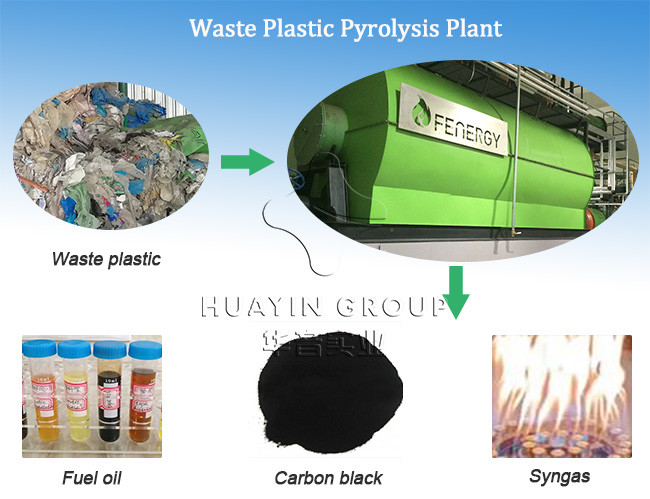

Output product and usage
Fuel oil
1. Used as the heating material and sell it to cement factories,
glass factories, ceramic factories, electric power factories, steel
making factories, boiler factories, etc.
2. Used in heavy oil generator for electricity generation.
3. Deep process it into diesel oil with our distillation plant, color and smell removal system, the final oil can be used in
diesel engines like trucks, tractors, etc.
Carbon Black (30%-35%)
Slag for construction.
Flammable Gas (8%-10%)
Recycled into the furnace to heat reactor instead of
coal/wood/oil/natural gas.
2. Storage the extra gas to restart the next batch.
Specification
| Item | Content |
| Raw materials | Waste tyre/rubber |
| Output | 45% fuel oil, 30% carbon black, 10% steel wire, 10%-15% syngas |
| Model | Reactor size | Capacity |
| HY1500*3000 | 1 T/batch |
| HY2000*4000 | 3T/batch |
| HY2200*6000 | 5 T/batch |
| HY2600*6000 | 7 T/batch |
| HY2600*6600 | 8 T/batch |
| HY2800*6000 | 9 T/batch |
| HY2800*6600 | 10 T/batch |
| HY2800*8100 | 15 T/batch |
| Reactor material and thickness | Q345R/Q245R/310S (Boiler plate/stainless steel) 14mm/16mm/18mm |
| The whole plant weight | 15-45 tons |
| Land area | 300-400m2(L30-40m*W10m) |
| Number of workers | 3-4 |
| Processing time and power | 10-24 hours. Averagely 15KW/h |
| Certification | CE, ISO, BV, SUV, SGS Oil Report, Emission Report, 11 patents |
Features of the waste plastic pyrolysis plant
INSTALLATION FREE
Model F750 adopts all-in-one design. All the parts are
pre-assembled within a frame structure. When you receive it, just
put it in position and connect water and electricity supplies, then
it can start working. No need to worry about installation anymore.

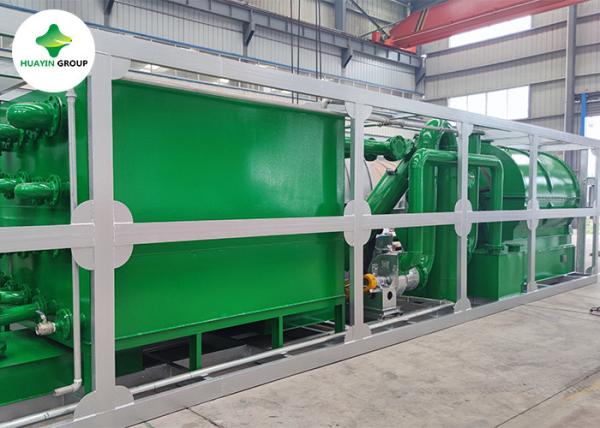

ALL-IN-ONE STRUCTURE
The main parts are pyrolysis reactor, heating system, de-duster,
condenser pipe, square box condenser, oil tanks, oil-gas separator,
oil-gas purification device, and syngas collector. All parts are in
one frame structure. The all-in-one structure makes installation,
transportation, operation and maintenance so easy.

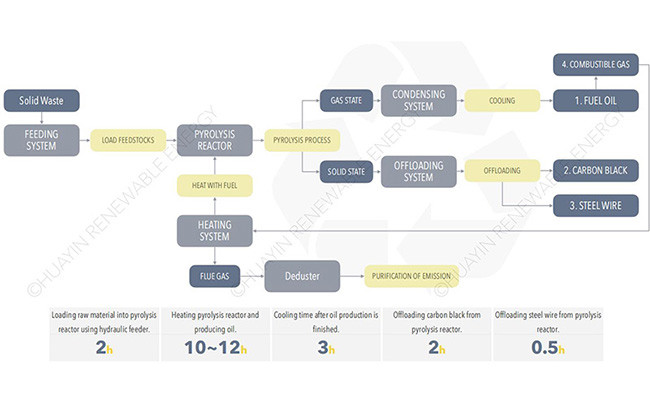

Working process
- Loading the waste material into the pyrolysis reactor manually or
with auto feeder.
- Heating the pyrolysis reactor and producing oil.
- The exhaust gas which can not be cooled to liquid oil will be
recycled to heat the reactor. Smoke will be purified through strong
and powerful dust removal device.
- Cool the pyrolysis reactor after oil production is finished.
- Discharging carbon black and steel wire.
Packing and shipping
FAQ
1. What is the price of one complete set of waste pyrolysis plants?
The price of the pyrolysis plant depends on the configuration, and
capacity, please contact us to get the latest quotation.
2. What payment methods do you accept?
A: We can accept T/T, L/C, Western Union.
3. Does waste pyrolysis plants pollute the environment?
With a powerful de-dusting system, the smoke will be
desulfurization and purified before being discharged out. SGS
emission reported provided.
4. How many countries have your machines been exported to?
HUAYIN equipment has been exported to over 80 countries including
Romania, Hungary, Turkey, Slovakia, Ecuador, Guatemala, Haiti,
Mexico, Peru, Canada, Jordan, UAE, Lebanon, Italian, Chile, Poland,
England, Thailand, Greece, Mexico, Benin, Indonesia, India,
Singapore, Russia, etc.
5. How long will it take to get the machine?
The delivery time is 15 -25 working days.
