Eco-Friendly Waste Plastic To Fuel Machine Batch Type Pyrolysis
Plant For Plastic
Product description
With the increasing awareness of environmental protection in the
world, the harmless and resourceful disposal of waste tires has

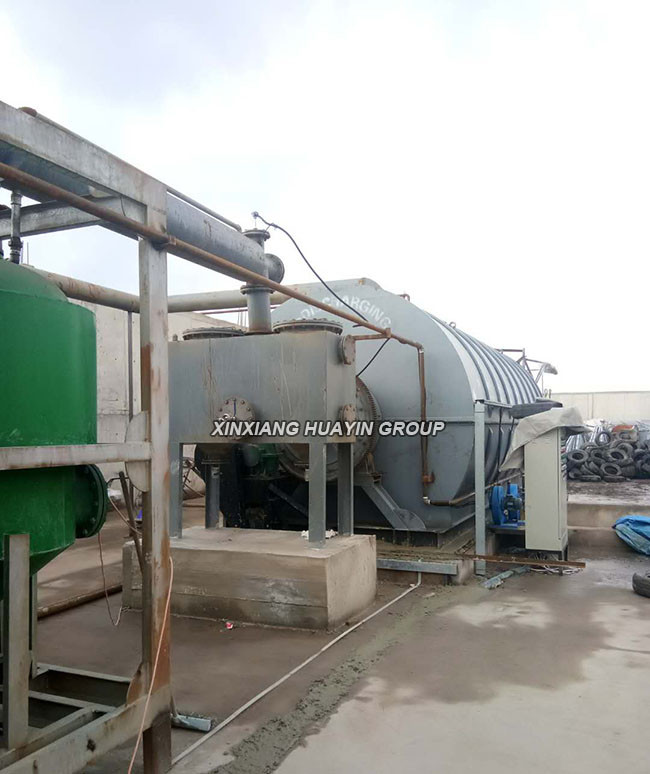

become an important trend. The waste tire/plastic pyrolysis plant
produced by Xinxiang Huayin processes waste tires/plastic through
catalytic cracking technology to generate industrial fuel oil,
carbon black and steel wire. This high-tech recycling technology
has created good economic and social benefits.
Output product and usage
| Output Products | Application |
Fuel Oil (50%-75%) | 1. Used as the heating material and sell it to cement factories,
glass factories, ceramic factories, electric power factories, steel
making factories, boiler factories, etc.
2. Used in heavy oil generator for electricity generation.
3. Deep process it into diesel oil with our distillation plant,
color and smell removal system, the final oil can be used in diesel
engines like trucks, tractors, etc. |
| Carbon Black (30%-35%) | Slag for construction. |
| Flammable Gas (8%-10%) | 1. Recycled into the furnace to heat reactor instead of
coal/wood/oil/natural gas.
2. Storage the extra gas to restart the next batch. |
Specification
| Item | Content |
| Raw materials | Waste tyre/rubber |
| Output | 45% fuel oil, 30% carbon black, 10% steel wire, 10%-15% syngas |
| Model | Reactor size | Capacity |
| HY1500*3000 | 1 T/batch |
| HY2200*5500 | 5 T/batch |
| HY2200*7500 | 7 T/batch |
| HY2600*6600 | 8 T/batch |
| HY2800*6000 | 9 T/batch |
| HY2800*6600 | 10 T/batch |
| HY2800*8000 | 15 T/batch |
| Remarks | Support customization |
| Reactor material and thickness | Q345R/Q245R/310S (Boiler plate/stainless steel) 16mm/18mm |
| Land area | 300-400㎡ (L30-40m*W10m) |
| Number of workers | 3-4 |
| Oil density and calorific value | 0.89g/cm³&44.30KJ/KG |
| Processing time and power | 10-24 hours. Averagely 15KW/h |
| Certification | CE, ISO, BV, SUV, SGS Oil Report, Emission Report, 11 patents |
Our advantages
A. Safety. We treat safety as the first important thing in production.
1. Two devices to avoid backfire in production: oil-water separator
and anti-back fire device.
2. Vacuum device makes the reactor work under ordinary pressure or
negative pressure.
3. Temperature monitoring and Pressure gauge to monitor the
pressure. If the pressure goes above a certain level, the bell will
alarm and the safety valve will release the pressure automatically.
B. Environmental protection
Environmental protection
1. The flue gas (caused by burning fuel to heat the reactor) will
be purified and cooled by a powerful ceramic packing dust removal
device, then can be released into the air through the chimney.
2. Carbon black will be discharged out in sealed condition to avoid
pollution.
C. Long service life
1. The material of the reactor is Q345R/Q245R boiler plate with
16/18mm thickness which is produced by a Chinese well-known
enterprise. The head of the reactor and accessories are using
one-piece molding shell cover rather than a welded plate.
2. The rollers are engineered underfeeding port and oil outlet port
which are external to the heating area to bring perfect rotating
balance and longer service life.
Our service
1. One-stop solution. We have more than 20 years of rich experience
in manufacturing waste pyrolysis plants. We pay more attention to
customer experience and customer satisfaction. As long as you need
it, we are able to provide you with a better quality complete
production line.
2. We have our own factory and trading company, no middlemen, more
cost-effective, and it is more convenient for you to replace
related parts, as long as there is a problem, we can provide a
solution immediately, product quality is guaranteed.
3. We promise that our plants are efficient and have a long service
life to ensure that you can quickly produce in batches.
4. Delivery time is 15-25 days.
5. We can send engineers on-site to guide installation and train
your workers.
6. One-year warranty, lifelong maintenance of the equipment,
providing professional use guidance services.
