High Efficiency Pyrolysis Plant Waste Tyres To Fuel Machinery
Function of waste plastic to fuel pyrolysis machine
Plastic pyrolysis is a process of breaking down plastic waste into
its constituent parts through the use of high temperatures in an
oxygen-free environment. The main products produced during tire
pyrolysis are fuel oil , carbon black and steel wire.
Output product and usage
| Output Products | Application |
| Fuel Oil (40%-55%) | 1. Used as the heating material and sell it to cement factories,
glass factories, ceramic factories, electric power factories, steel
making factories, boiler factories, etc.
2. Used in heavy oil generator for electricity generation.
3. Deep process it into diesel oil with our distillation plant,
color, and smell removal system, the final oil can be used in
trucks, tractors, etc. |
| Carbon Black (30%-35%) | 1. Make it to pellet or briquette as heating material. |
| Steel Wire (10%-15%) | Sell to iron and steel factory directly. |
| Flammable Gas (8%-10%) | 1. Recycled into the furnace to heat reactor instead of heating
material. 2. Storage the excess gas to restart the next batch. |
Parameter of rubber pyrolysis machine
| Item | Content |
| Raw materials | Waste tyre/rubber |
| Output | 45% fuel oil, 30% carbon black, 10% steel wire, 10%-15% syngas |
| Model | Reactor size | Capacity |
| HY1500*3000 | 1 T/batch |
| HY2000*4000 | 3T/batch |
| HY2200*6000 | 5 T/batch |
| HY2600*6000 | 7 T/batch |
| HY2600*6600 | 8 T/batch |
| HY2800*6000 | 9 T/batch |
| HY2800*6600 | 10 T/batch |
| HY2800*8100 | 15 T/batch |
| Reactor material and thickness | Q345R/Q245R/310S (Boiler plate/stainless steel) 14mm/16mm/18mm |
| The whole plant weight | 15-45 tons |
| Land area | 300-400m2(L30-40m*W10m) |
| Number of workers | 3-4 |
| Processing time and power | 10-24 hours. Averagely 15KW/h |
| Certification | CE, ISO, BV, SUV, SGS Oil Report, Emission Report, 11 patents |
Standing features of Huayin Tyre Pyrolysis plant for sale

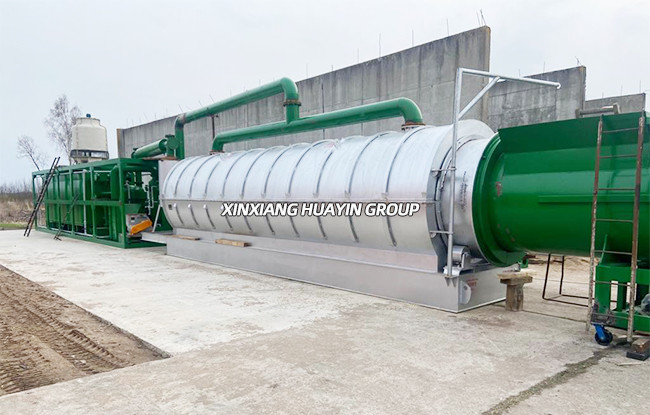

Pyrolysis reactor :
1.The pyrolysis reactor offers an oxygen-free and high-temperature
working condition for pyrolysis process of feedstocks.
2.Manufactured with good material of Q245R boiler plate.
3.The rollers are engineered under the feeding port and oil outlet
port which is external from the heating area to bring perfect
rotating balance and long service life.
4.Safe operation.
Horizontal condenser
1.Condensing process is divided into three stages. Pyrolysis gas
passes through horizontal condenser pipe x1, horizontal condenser
×3 and vertical condenser x1 in sequence, to maximize the
condensing effect.
2.Combustible gas (non-condensable gas) is collected by the system
and routed to the heating system as a fuel supply. It saves fuel
consumption meanwhile protect the environment.
Deduster
1.The stainless steel deduster is filled with ceramic filters inside,
which brings it strong dust adsorption capacity and good dust
control effect.
2.Stainless steel material provides long life span for deduster.
3.Easy installation and maintenance.
Discharging device
1.Carbon black is conveyed in a sealed condition to achieve
pollution-free.
2.The screw conveyor is combined with condenser to help cool down
carbon black.
3.Easy storage and packing from screw conveyor.
Our service
1. Help the client do the Feasibility Analysis Report according to
the customer’s local market.
2. Design the layout drawings according to the site of customers.
3. For each set of pyrolysis plants, one engineer will be sent to
guide the installation, test the machine and train the workers.
4. One-year warranty for the complete plant.
