Waste Plastic Pyrolysis Reactor Cost For Plastics Pyrolysis To Fuel
Oil Machine
Product description

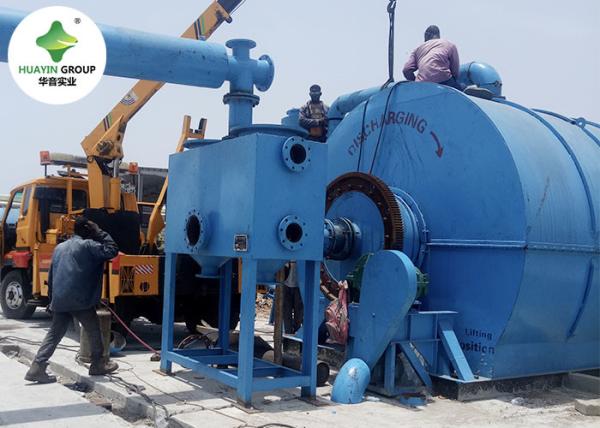

The function of the waste plastic pyrolysis reactor plant is to
convert various kinds of waste plastic like PP, PE, PS, ABS, PMMA,
etc, to fuel oil, carbon black, and syngas. Due to the advantages
of environmentally friendly, energy-saving, high safety level, and
large profit of this equipment, it is widely used for the treatment
of waste plastic products and rubber scrap recycling.
Input raw material
The applicable waste raw material includes various kinds of waste
tires, car tires, bicycle tires, motorcycle tires, OTR tires, etc.
Various kinds of plastic waste, like PP, PE, PS, ABS, PMMA, etc.
Output product and usage
Fuel Oil (50%-75%)
1. Used as the heating material and sell it to cement factories,
glass factories, ceramic factories, electric power factories, steel
making factories, boiler factories, etc.
2. Used in heavy oil generator for electricity generation.
3. Deep process it into diesel oil with our distillation plant,
color, and smell removal system, the final oil can be used in
diesel engines like trucks, tractors, etc.
Carbon Black (30%-35%)
Slag for construction.
Flammable Gas (8%-10%)
1. Recycled into the furnace to heat reactor instead of
coal/wood/oil/natural gas.
2. Storage the extra gas to restart the next batch.
Specification
| Item | Content |
| Raw materials | Waste plastic, PP ,PE, PS, ABS,PMMA,etc. |
| Output | Fuel oil , carbon black,syngas |
| Model | Reactor size | Capacity |
| HY1500*3000 | 1 T/batch |
| HY2200*5500 | 5 T/batch |
| HY2200*7500 | 7 T/batch |
| HY2600*6600 | 8 T/batch |
| HY2800*6000 | 9 T/batch |
| HY2800*6600 | 10 T/batch |
| HY2800*8000 | 15 T/batch |
| Remarks | Support customization |
| Reactor material and thickness | Q345R/Q245R/310S (Boiler plate/stainless steel) 16mm/18mm |
| Land area | 300-400㎡ (L30-40m*W10m) |
| Number of workers | 3-4 |
| Oil density and calorific value | 0.89g/cm³&44.30KJ/KG |
| Processing time and power | 10-24 hours. Averagely 15KW/h |
| Certification | CE, ISO, BV, SUV, SGS Oil Report, Emission Report, 11 patents |
Features
1. High efficiency. The feeding port of the pyrolysis reactor is
1400mm, so the waste material doesn’t need pretreatment, it can be
put into the pyrolysis reactor directly with the auto feeder
machine.
2. High stability. The rollers are engineered underfeeding port and
oil outlet port which are external from the heating area to bring
perfect rotating balance and longer service life.
3. Energy saving: Non-condensable gas will go back to the heating
system for second burning as heating material, saving your heating
fuel.
4. High oil yield: Larger condensation area to ensure sufficient
condensation of oil gas into liquid oil.
5. Eco-friendly: The stainless steel deduster is filled with
ceramic filters inside, which brings it strong dust adsorption
capacity and a good dedusting effect.
6. High safety level: Equipped with Alarm, auto pressure releasing
device, anti backfire device, vacuum pump to ensure the machine
working smoothly.
Our company
Xinxiang Huayin Renewable Energy Equipment Co., Ltd is located in
Xinxiang City, Henan Province, and is specialized in manufacturing
waste tires/plastics to fuel oil pyrolysis machines and waste oil
for diesel distillation machines since 1993. We have more than 2000
square meters of running demo plants for customers' visitation and
learning. our plants have been exported to over 80 countries around
the world including Romania, Hungary, Turkey, Slovakia, Ecuador,
Guatemala, Haiti, Mexico, Peru, Canada, USA, Jordan, UAE, Lebanon,
Kuwait, Italy, Chile, Poland, England, Thailand, Greece, Mexico,
Benin, Indonesia, India, Singapore, Russia, etc.
