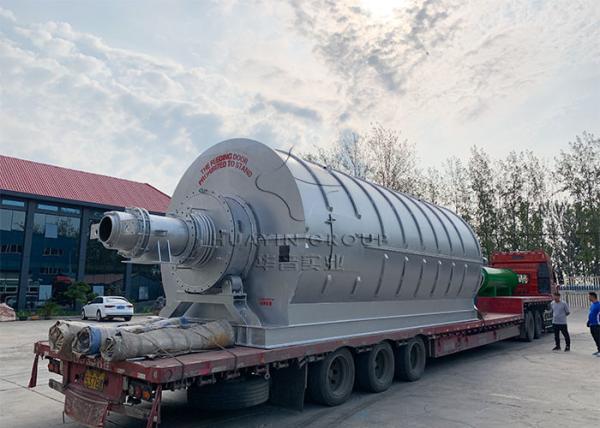

Hydrothermal Pyrolysis Plastic To Oil Rotary Kiln Waste Pyrolysis
Plant
Product description
Nowadays, with human exploitation and environmental degradation,
natural energy especially oil energy is becoming less and less, on
the contrary, municipal solid wastes are becoming more and more.
Huayin waste plastic pyrolysis machine can convert the normal daily
wastes like plastic bags, and rubber scraps into fuel oil, which
can be used as heating fuel in many industrial fields.
Specification
| Item | Content |
| Raw materials | Waste tyre/rubber |
| Output | 45% fuel oil, 30% carbon black, 10% steel wire, 10%-15% syngas |
| Model | Reactor size | Capacity |
| HY1500*3000 | 1 T/batch |
| HY2200*5500 | 5 T/batch |
| HY2200*7500 | 7 T/batch |
| HY2600*6600 | 8 T/batch |
| HY2800*6000 | 9 T/batch |
| HY2800*6600 | 10 T/batch |
| HY2800*8000 | 15 T/batch |
| Remarks | Support customization |
| Reactor material and thickness | Q345R/Q245R/310S (Boiler plate/stainless steel) 16mm/18mm |
| Land area | 300-400㎡ (L30-40m*W10m) |
| Number of workers | 3-4 |
| Oil density and calorific value | 0.89g/cm³&44.30KJ/KG |
| Processing time and power | 10-24 hours. Averagely 15KW/h |
| Certification | CE, ISO, BV, SUV, SGS Oil Report, Emission Report, 11 patents |
Function of the output product
Fuel Oil (50%-75%)
1. Used as the heating material and sell it to cement factories,
glass factories, ceramic factories, electric power factories, steel
making factories, boiler factories, etc.
2. Used in heavy oil generator for electricity generation.
3. Deep process it into diesel oil with our distillation plant,
color and smell removal system, the final oil can be used in diesel
engines like trucks, tractors, etc.
Carbon Black (30%-35%)
Slag for construction.
Flammable Gas (8%-10%)
1. Recycled into the furnace to heat reactor instead of
coal/wood/oil/natural gas.
2. Storage the extra gas to restart the next batch.
Main Features
A. Safety. We treat safety as the first important thing in
production.
1. Two devices to avoid backfire in production: oil-water separator
and anti-back fire device.
2. Vacuum device makes the reactor work under ordinary pressure or
negative pressure.
3. Temperature monitoring and Pressure gauge to monitor the
pressure. If the pressure goes above a certain level, the bell will
alarm and the safety valve will release the pressure automatically.
B. Environmental protection
1. The flue gas (caused by burning fuel to heat the reactor) will
be purified and cooled by a powerful ceramic packing dust removal
device, then can be released into the air through the chimney.
2. Carbon black will be discharged out in sealed condition to avoid
pollution.
C. Energy saving
1. The flame path is designed as a spiral so that the quantity of
heat can be fully used.
2. The syngas is recycled to heating furnace for burning, thus
saving your heating fuel.
3. The insulation cover is formed by 3 layers: steel plate, rock
wool, and refractory cement. Excellent thermal insulation effect
helps save fuel.
Our service
1. One-stop solution. We have more than 20 years of rich experience
in manufacturing waste pyrolysis plants. We pay more attention to
customer experience and customer satisfaction. As long as you need
it, we are able to provide you with a better quality complete
production line.
2. We have our own factory and trading company, no middlemen, more
cost-effective, and it is more convenient for you to replace
related parts, as long as there is a problem, we can provide a
solution immediately, product quality is guaranteed.
3. We promise that our plants are efficient and have a long service
life to ensure that you can quickly produce in batches.
4. Delivery time is 15-25 days.
5. We can send engineers on-site to guide installation and train
your workers.
6. One-year warranty, lifelong maintenance of the equipment,
providing professional use guidance services.
