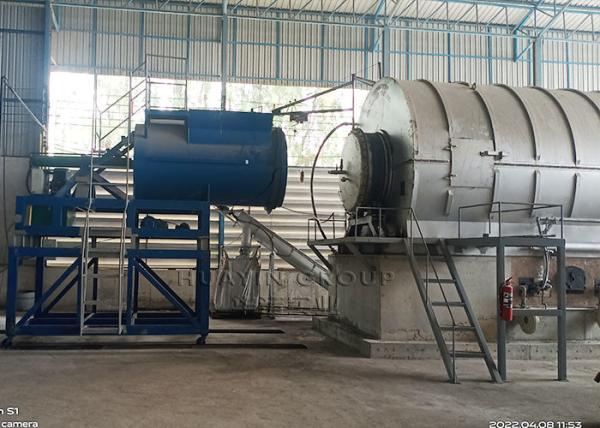

30 Ton Car Tire Pyrolysis Oil Plant Converting Tyres To Fuel
Pyrolysis Equipment
Product description
With the rising public awareness for environmental protection,
Waste tire/plastic recycling has attracted more and more attention
all over the world. Huayin pyrolysis technology can convert waste
tires, rubber, and plastic scrap into fuel oil, carbon black, steel
wire and combustible gas. The plant has the advantages of
environmental friendly, energy-saving, high oil yield and quality,
and longer service life.
Output product and usage
1. Fuel oil (40-45%): Widely used as fuel oil in industries such as
steel and iron factories, ceramics or heavy oil generators, cement
factories, boiler heating, etc. Or being refined into non-standard
diesel for use in trucks, tractors, etc.
2. Carbon black(30%): Be pressed into pellets for use in industrial
heating； It can be ground and refined to different standards.
3. Steel wires(10%): Sold or reprocessed
4. Combustible gas(10%-15%): Can be recycled and used during
production as fuel.
Specification
| Item | Content |
| Raw materials | Waste tyre/rubber/plastic |
| Output | Fuel oil, carbon black, steel wire, syngas |
| Model | Reactor size | Capacity |
| HY1500*3000 | 1 T/batch |
| HY2200*5500 | 5 T/batch |
| HY2200*7500 | 7 T/batch |
| HY2600*6600 | 8 T/batch |
| HY2800*6000 | 9 T/batch |
| HY2800*6600 | 10 T/batch |
| HY2800*8000 | 15 T/batch |
| Remarks | Support customization |
| Reactor material and thickness | Q345R/Q245R/310S (Boiler plate/stainless steel) 16mm/18mm |
| Land area | 300-400㎡ (L30-40m*W10m) |
| Number of workers | 3-4 |
| Oil density and calorific value | 0.89g/cm³&44.30KJ/KG |
| Processing time and power | 10-24 hours. Averagely 15KW/h |
| Certification | CE, ISO, BV, SUV, SGS Oil Report, Emission Report, 11 patents |
3D layout design
Main features
Safety: Alarm, auto pressure releasing device, anti backfire device,
vacuum pump to ensure the machine working smoothly.
Oil-water separator: Its water sealing design ensures that oil and
gas are separated and combustible gas can not return to the
reactor.
Energy-saving:
The inner reactor body and outside insulation cover have good
airtightness, avoiding heating loss and saving fuel.
The combustible gas that cannot be further cooled down into fuel
oil will be recycled to the furnace for heating the reactor,
maximizing resource utilization.
The cooling water adopts a circulating mode, which is
pollution-free, no discharging, and recyclable.
High efficiency discharging: Adopt screw conveyor discharging device, discharge carbon black in
sealed condition, no pollution and save labor and time.
Fast installation: All of the condensing parts have been installed together before
delivery from the factory, saving installation time and ensuring
welding quality.
Auto feeder machine to feed raw material automatically, save labor and time
Our service
1. One-stop solution. We have more than 20 years of rich experience
in manufacturing waste pyrolysis plants. We pay more attention to
customer experience and customer satisfaction. As long as you need
it, we are able to provide you with a better quality complete
production line.
2. We have our own factory and trading company, no middlemen, more
cost-effective, and it is more convenient for you to replace
related parts, as long as there is a problem, we can provide a
solution immediately, product quality is guaranteed.
3. We promise that our plants are efficient and have a long service
life to ensure that you can quickly produce in batches.
4. Delivery time is 15-25 days.
5. We can send engineers on-site to guide installation and train
your workers.
6. One-year warranty, lifelong maintenance of the equipment,
providing professional use guidance services.
