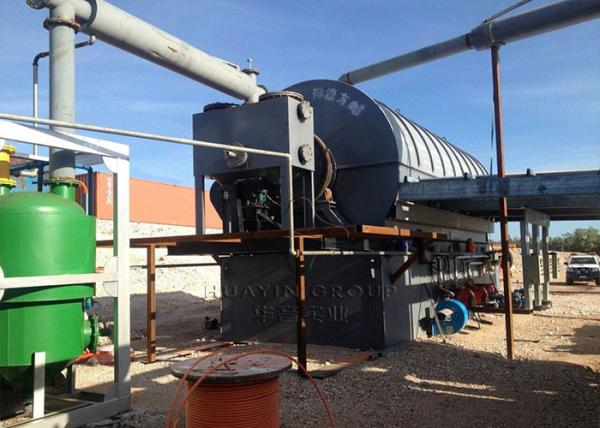

Used Tires For Pyrolysis Oil Bangladesh Plant Turn-Key Waste Tyre
Pyrolysis Machine
Product description
The function of the waste tire/plastic pyrolysis plant is to
convert various kinds of waste tires like car tyres , motorcycle
tires, bicycle tires, and OTR tires , plastic scrap to fuel oil,
carbon black, steel wire, and syngas. Due to the advantages of
environmentally friendly, energy-saving, high safety level, and
large profit of this equipment, it is widely used for the treatment
of waste rubber and plastic products.
Output product and application
| Output Products | Application |
| Fuel Oil (40%-55%) | 1. Used as the heating material and sell it to cement factories,
glass factories, ceramic factories, electric power factories, steel
making factories, boiler factories, etc.
2. Used in heavy oil generator for electricity generation.
3. Deep process it into diesel oil with our distillation plant,
color, and smell removal system, the final oil can be used in
trucks, tractors, etc. |
| Carbon Black (30%-35%) | 1. Make it to pellet or briquette as heating material. |
| Steel Wire (10%-15%) | Sell to iron and steel factory directly. |
| Flammable Gas (8%-10%) | 1. Recycled into the furnace to heat reactor instead of heating
material. 2. Storage the excess gas to restart the next batch. |
Specification
| Model | HY-05 | HY-08 | HY-10 | HY-15 |
| Raw material | Waste rubbers/tyres/plastic |
| Output product | 45% fuel oil, 30% carbon black, 10% steel wire, 10%-15% syngas |
| Daily Handling capacity | 5 tons | 8 tons | 10 tons | 12 tons |
| Machine dimension(mm) | D2200*L5500 | D2600*L6600 | D2800*L6600 | D2800*L8000 |
| Landing Area | 200m2 | 250m2 | 300m2 | 350m2 |
| Working pressure | Normal pressure |
| Main engine rotating speed | 0.4R /min |
| Power | 15KWH |
| Cooling Mode | Circle Water |
| Heating Mode | Direct |
| Oil Yield | 40%-50% |
| Noise dB (A) | <=85 |
| Working Mode | Batch type |
Operation process
1. Loading the waste material into the pyrolysis reactor manually
or with auto feeder.
2. Heating the pyrolysis reactor and producing oil.
3. The exhaust gas which can not be cooled to liquid oil will be
recycled to heat the reactor. Smoke will be purified through strong
and powerful dust removal device.
4. Cool the pyrolysis reactor after oil production is finished.
5. Discharging carbon black and steel wire.
Main features
1. High efficiency. The feeding port of the pyrolysis reactor is
1400mm, so the waste material doesn’t need pretreatment, it can be
put into the pyrolysis reactor directly with the auto feeder
machine.
2. High stability. The rollers are engineered underfeeding port and
oil outlet port which are external from the heating area to bring
perfect rotating balance and longer service life.
3. Energy saving: Non-condensable gas will go back to the heating
system for second burning as heating material, saving your heating
fuel.
4. High oil yield: Larger condensation area to ensure sufficient
condensation of oil gas into liquid oil.
5. Eco-friendly: The stainless steel deduster is filled with
ceramic filters inside, which brings it strong dust adsorption
capacity and a good dedusting effect.
6. High safety level: Equipped with Alarm, auto pressure releasing
device, anti backfire device, vacuum pump to ensure the machine
working smoothly.
FAQ
1. What is the price of one complete set of waste pyrolysis plants?
The price of the pyrolysis plant depends on the configuration, and
capacity, please contact us to get the latest quotation.
2. What payment methods do you accept?
A: We can accept T/T, L/C, Western Union.
3. Does waste pyrolysis plants pollute the environment?
With a powerful de-dusting system, the smoke will be
desulfurization and purified before being discharged out. SGS
emission reported provided.
4. How many countries have your machines been exported to?
HUAYIN equipment has been exported to over 80 countries including
Romania, Hungary, Turkey, Slovakia, Ecuador, Guatemala, Haiti,
Mexico, Peru, Canada, Jordan, UAE, Lebanon, Italian, Chile, Poland,
England, Thailand, Greece, Mexico, Benin, Indonesia, India,
Singapore, Russia, etc.
5. How long will it take to get the machine?
The delivery time is 15 -25 working days.
