10kg Micro Pyrolisis Plant Plastic Waste To Oil Pyrolysis Machine
Easy Operation
Product description
Before you invest the waste pyrolysis plant , you might want to
know how the pyrolysis plant works, the oil yield of your waste raw
material and if the project is profitable, then the 10kg mini
pyrolysis plant is a perfect choice as it can meet all your above
demands. You can put 10kg waste materials into the reactor, after 1-2hours,
the fuel oil will come out. Through this machine, you can get plastic oil, carbon black, and
syngas which can be recycled to the furnace to heat the reactor
again.
Input raw material
The applicable waste raw material includes various kinds of waste
tires, car tires, bicycle tires, motorcycle tires, OTR tires, etc.
Various kinds of plastic waste, like PP, PE, PS, ABS, PMMA, etc.
Output product and application
| Fuel Oil (40%-55%) | 1. Used as the heating material and sell it to cement factories,
glass factories, ceramic factories, electric power factories, steel
making factories, boiler factories, etc.
2. Used in heavy oil generator for electricity generation.
3. Deep process it into diesel oil with our distillation plant,
color, and smell removal system, the final oil can be used in
trucks, tractors, etc. |
| Carbon Black (30%-35%) | 1. Make it to pellet or briquette as heating material. |
| Steel Wire (10%-15%) | Sell to iron and steel factory directly. |
| Flammable Gas (8%-10%) | 1. Recycled into the furnace to heat reactor instead of heating
material. 2. Storage the excess gas to restart the next batch. |
Features
1. Small landing area: It covers only 4 ㎡, so you can place it
anywhere you want and show it to the government, investors, clients
etc.
2. Easy installation and operation: All you need to do is connect
water source, electricity, and fuel supplies.
3. Easy transportation: The 10kg mini pyrolysis plant is packed
into 2 wooden boxes, 540kg totally, and it can be shipped by air if
you need it urgently.
4. Security: Anti-blocking device and have pressure gauges, alarms,
and safety valves to ensure safety.
Specification
| Capacity | 10kg |
| Overall dimension | 4m*1m |
| Total weight | 540kg |
| Working mode | Batch type |
| Average power | 120W |
| Power Voltage | 380V(customized support) |
| Material | Stainless steel / Q345R |
Working process
1. Loading the waste material into the pyrolysis reactor manually
or with auto feeder.
2. Heating the pyrolysis reactor and producing oil.
3. The exhaust gas which can not be cooled to liquid oil will be
recycled to heat the reactor. Smoke will be purified through strong
and powerful dust removal device.
4. Cool the pyrolysis reactor after oil production is finished.
5. Discharging carbon black and steel wire.

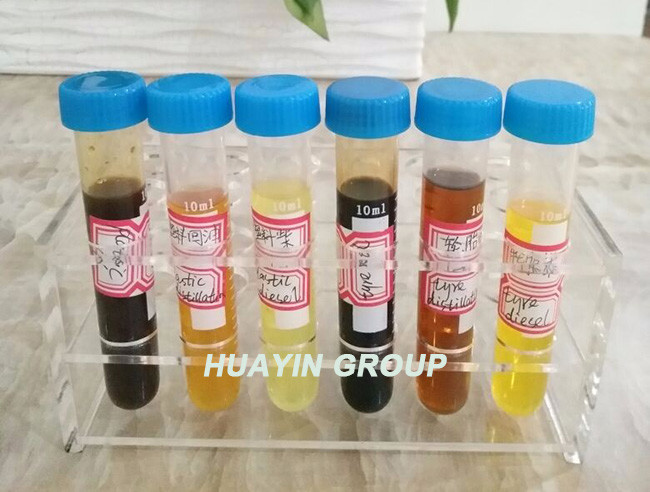

Output Oil product
