Pyrolysis Plant Plastic Self Feeding Tire Pyrolysis With Catalyst
To Diesel Fuel Oil
Product description
The function of the waste tire/plastic pyrolysis plant is to
convert various kinds of waste tires like car tyres , motorcycle
tires, bicycle tires, and OTR tires , plastic scrap to fuel oil,
carbon black, steel wire, and syngas. Due to the advantages of
environmentally friendly, energy-saving, high safety level, and
large profit of this equipment, it is widely used for the treatment
of waste rubber and plastic products.
Specification
| Model | HY-05 | HY-08 | HY-10 | HY-15 |
| Raw material | Waste rubbers/tyres/plastic |
| Output product | 45% fuel oil, 30% carbon black, 10% steel wire, 10%-15% syngas |
| Daily Handling capacity | 5 tons | 8 tons | 10 tons | 12 tons |
| Machine dimension(mm) | D2200*L5500 | D2600*L6600 | D2800*L6600 | D2800*L8000 |
| Landing Area | 200m2 | 250m2 | 300m2 | 350m2 |
| Working pressure | Normal pressure |
| Main engine rotating speed | 0.4R /min |
| Power | 15KWH |
| Cooling Mode | Circle Water |
| Heating Mode | Direct |
| Oil Yield | 40%-50% |
| Noise dB (A) | <=85 |
| Working Mode | Batch type |
what you will get from different amounts of tires?
1. Fuel oil (40-45%): Widely used as fuel oil in industries such as
steel and iron factories, ceramics or heavy oil generators, cement
factories, boiler heating, etc. Or being refined into non-standard
diesel for use in trucks, tractors, etc.
2. Carbon black(30%): Be pressed into pellets for use in industrial
heating；It can be ground and refined into different standards.
3. Steel wires(10%): Sold or reprocessed
4. Combustible gas(10%-15%): Can be recycled and used during
production as fuel.
Main features

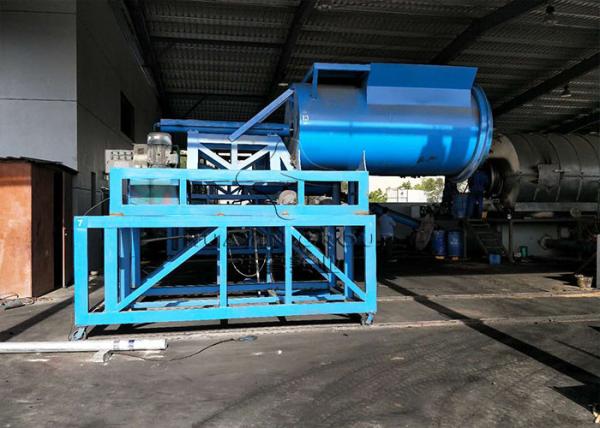

1. High automation: Loading used tires/plastic into the pyrolysis
reactor with 50ton hydraulic pressure, so the auto feeder can help
you save labor and load more waste raw material, compared with
manual feeding, the automatic feeder is more efficient.
2. 100% safety: The pyrolysis reactor is made of Q245R/Q345R
boilerplate, which is high pressure and high-temperature resistance
that ensure its longer service life. Adding perfect hot seal
technology to ensure operation safely.
3. Environmental friendly: Flue gas is purified by ceramic packing
dedusting device, finally no black smoke emitted.
4. High efficiency discharging device: Discharge carbon black from
pyrolysis reactor after the production is finished in a sealed
condition, no pollution and saves labor and time.
5. Strictly quality control. All of the steel plates are purchased
from China's famous company " Anyang Iron and Steel Co., Ltd ", and
the raw material inspection certificate can be provided to
customers. For each set of machines, we will do ultrasonic
nondestructive testing, and automatic submerged welding technology
to ensure the machine quality.
Our company
Xinxiang Huayin Renewable Energy Equipment Co., Ltd is located in
Xinxiang City, Henan Province, and is specialized in manufacturing
waste tires/plastics to fuel oil pyrolysis machines and waste oil
for diesel distillation machines since 1993. We have more than 2000
square meters of running demo plants for customers' visitation and
learning. our plants have been exported to over 80 countries around
the world including Romania, Hungary, Turkey, Slovakia, Ecuador,
Guatemala, Haiti, Mexico, Peru, Canada, USA, Jordan, UAE, Lebanon,
Kuwait, Italy, Chile, Poland, England, Thailand, Greece, Mexico,
Benin, Indonesia, India, Singapore, Russia, etc.
