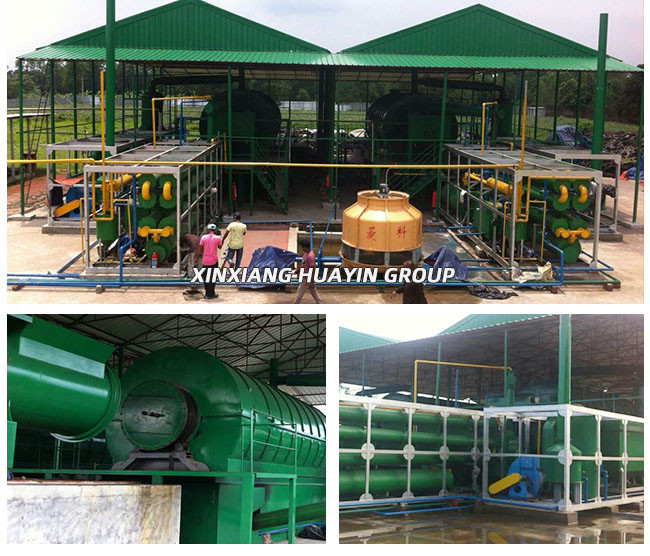

Huayin Direclty Heating Tire Pyrolysis Oil Recycling Car Tire
Pyrolysis Plant In Iran
Product description
The function of the waste tire/plastic pyrolysis plant is to
convert various kinds of waste tires like car tyres , motorcycle
tires, bicycle tires, and OTR tires , plastic scrap to fuel oil,
carbon black, steel wire, and syngas. Due to the advantages of
environmentally friendly, energy-saving, high safety level, and
large profit of this equipment, it is widely used for the treatment
of waste rubber and plastic products.
Specification
| Model | HY-05 | HY-08 | HY-10 | HY-15 |
| Raw material | Waste rubbers/tyres/plastic |
| Output product | 45% fuel oil, 30% carbon black, 10% steel wire, 10%-15% syngas |
| Daily Handling capacity | 5 tons | 8 tons | 10 tons | 12 tons |
| Machine dimension(mm) | D2200*L5500 | D2600*L6600 | D2800*L6600 | D2800*L8000 |
| Landing Area | 200m2 | 250m2 | 300m2 | 350m2 |
| Working pressure | Normal pressure |
| Main engine rotating speed | 0.4R /min |
| Power | 15KWH |
| Cooling Mode | Circle Water |
| Heating Mode | Direct |
| Oil Yield | 40%-50% |
| Noise dB (A) | <=85 |
| Working Mode | Batch type |
Main features
1. High automation: Loading used tires/plastic into the pyrolysis
reactor with 50ton hydraulic pressure, so the auto feeder can help
you save labor and load more waste raw material, compared with
manual feeding, the automatic feeder is more efficient.
2. 100% safety: The pyrolysis reactor is made of Q245R/Q345R
boilerplate, which is high pressure and high-temperature resistance
that ensure its longer service life. Adding perfect hot seal
technology to ensure operation safely.
3. Environmental friendly: Flue gas is purified by ceramic packing
dedusting device, finally no black smoke emitted.
4. High efficiency discharging device: Discharge carbon black from
pyrolysis reactor after the production is finished in a sealed
condition, no pollution and saves labor and time.
5. Strictly quality control. All of the steel plates are purchased
from China's famous company " Anyang Iron and Steel Co., Ltd ", and
the raw material inspection certificate can be provided to
customers. For each set of machines, we will do ultrasonic
nondestructive testing, and automatic submerged welding technology
to ensure the machine quality.
Output product and usage
| Output Products | Application |
| Fuel Oil (40%-55%) | 1. Used as the heating material and sell it to cement factories,
glass factories, ceramic factories, electric power factories, steel
making factories, boiler factories, etc.
2. Used in heavy oil generator for electricity generation.
3. Deep process it into diesel oil with our distillation plant,
color, and smell removal system, the final oil can be used in
trucks, tractors, etc. |
| Carbon Black (30%-35%) | 1. Make it to pellet or briquette as heating material. |
| Steel Wire (10%-15%) | Sell to iron and steel factory directly. |
| Flammable Gas (8%-10%) | 1. Recycled into the furnace to heat reactor instead of heating
material. 2. Storage the excess gas to restart the next batch. |
Operation Process
1: Feeding. Feed tires into reactor manually or with auto feeder;
2: Preheating. Waste tyres will be melted under high temperatures
and oil gas comes out.
3: Oil-producing. Oil gas goes through the cooling system and is
cooled down into liquid fuel oil; Some oil gas that can not be
turned into liquid oil will go back to the heating furnace for
second burning.
4: Cooling. After the oil processing is finished, leave the plant
for cooling.
5: Carbon black discharging.
6: Pulling out steel wire.
