Large Profit Waste To Fuel Plastic Pyrolyzer Plastic To Petrol
Machine Pyrolysis Plant
Product description
The plastic waste that can be seen everywhere seriously pollutes
our living environment, how to dispose of this plastic waste

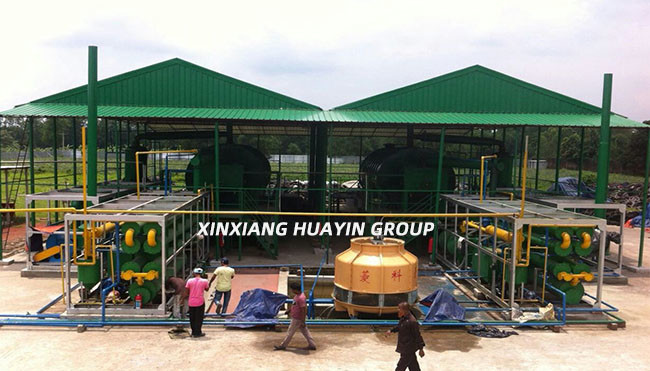

properly is increasingly important. Huayin waste plastic pyrolysis
plant can recycle the waste plastic to fuel oil, carbon black, and
gas through pyrolysis technology, the whole process is
environmentally friendly and brings you large profit .
Output product and usage
| Output Products | Application |
| Fuel Oil (40%-55%) | 1. Used as the heating material and sell it to cement factories,
glass factories, ceramic factories, electric power factories, steel
making factories, boiler factories, etc.
2. Used in heavy oil generator for electricity generation.
3. Deep process it into diesel oil with our distillation plant,
color, and smell removal system, the final oil can be used in
trucks, tractors, etc. |
| Carbon Black (30%-35%) | 1. Make it to pellet or briquette as heating material. |
| Steel Wire (10%-15%) | Sell to iron and steel factory directly. |
| Flammable Gas (8%-10%) | 1. Recycled into the furnace to heat reactor instead of heating
material. 2. Storage the excess gas to restart the next batch. |
Specification
| Item | Content |
| Raw materials | Waste tyre/rubber |
| Output | 45% fuel oil, 30% carbon black, 10% steel wire, 10%-15% syngas |
| Model | Reactor size | Capacity |
| HY1500*3000 | 1 T/batch |
| HY2200*5500 | 5 T/batch |
| HY2200*7500 | 7 T/batch |
| HY2600*6600 | 8 T/batch |
| HY2800*6000 | 9 T/batch |
| HY2800*6600 | 10 T/batch |
| HY2800*8000 | 15 T/batch |
| Remarks | Support customization |
| Reactor material and thickness | Q345R/Q245R/310S (Boiler plate/stainless steel) 16mm/18mm |
| Land area | 300-400㎡ (L30-40m*W10m) |
| Number of workers | 3-4 |
| Oil density and calorific value | 0.89g/cm³&44.30KJ/KG |
| Processing time and power | 10-24 hours. Averagely 15KW/h |
| Certification | CE, ISO, BV, SUV, SGS Oil Report, Emission Report, 11 patents |
Main features
A. Environmental protection
Environmental protection
1. The flue gas (caused by burning fuel to heat the reactor) will
be purified and cooled by a powerful ceramic packing dust removal
device, then can be released into the air through the chimney.
2. Carbon black will be discharged out in sealed condition to avoid
pollution.
B. Energy saving
1. The flame path is designed as a spiral so that the quantity of
heat can be fully used.
2. The syngas is recycled to heating furnace for burning, thus
saving your heating fuel.
3. The insulation cover is formed by 3 layers: steel plate, rock
wool, and refractory cement. Excellent thermal insulation effect
helps save fuel.
C.The high degree of automation
1. In manufacturing we use auto-cutting machines, auto welding
machines, auto rolling machines so that both the quality and
appearance of our products can be guaranteed.
2. In production, we use auto-feeder to feed raw materials into
pyrolysis reactor. By auto-feeder it needs few workers and less
time to feed. And because of 50 ton hydraulic pressure, it can feed
more tires than manually feeding.
Profit analysis
| Project | Qty. | Unit Price | Cost/Day | Cost/Month (25Days) | Cost/Year (10Months) |
| (MT) | (USD) | (USD) | (USD) | (USD) |
| Production cost | | | | | |
| A,Waste plastic | 10 | 295.00 | 2,950.00 | 73,750.00 | 737,500.00 |
| B,Electric | 300KW | 0.059 | 17.70 | 442.50 | 4,425.00 |
| C,Fuel(Coal) | 0.25 | 649.00 | 162.25 | 4,056.25 | 40,562.50 |
| D,Labor(4 workers) | 4 | 4.73 | 64.00 | 1,600.00 | 16,000.00 |
| Total | | | 3,193.95 | 79,848.75 | 798,487.50 |
| Sales Income | | | | | |
| A,Fuel Oil (70%) | 7.0 | 649.00 | 4,543.00 | 113,575.00 | 1,135,750.00 |
| B,Carbon Black(20%) | 2.0 | 165.00 | 330.00 | 8,250.00 | 82,500.00 |
| Total | 9 | 814.00 | 4,873.00 | 121,825.00 | 1,218,250.00 |
| | | | | |
| Factory Profit | | | 1,679.05 | 41,976.25 | 419,762.50 |
For more details, welcome contact us !
