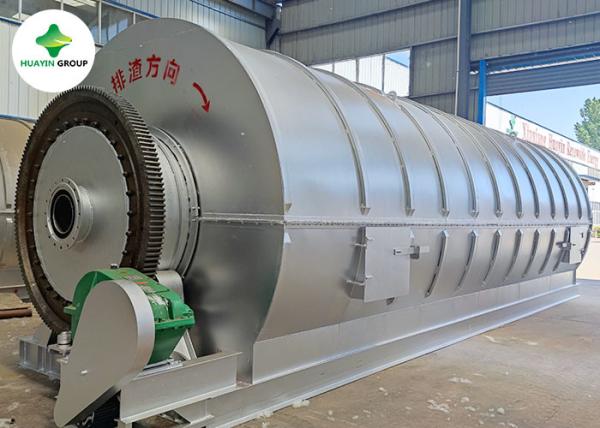

Huayin Recycling Plastic To Fuel 5 Ton Waste Plastic Pyrolysis
Machine With CE ISO
Product description
With the rapid development of the plastics industry, the
application of plastic products is becoming more and more
extensive, but because plastics are not easy to rot and degrade,
this seriously affects the ecological environment of the earth. The
waste plastic pyrolysis refining equipment is not only
pollution-free to the environment but also can recover energy
effectively.
Output product and usage
Fuel Oil (50%-75%)
1. Used as the heating material and sell it to cement factories,
glass factories, ceramic factories, electric power factories, steel
making factories, boiler factories, etc.
2. Used in heavy oil generator for electricity generation.
3. Deep process it into diesel oil with our distillation plant,
color and smell removal system, the final oil can be used in diesel
engines like trucks, tractors, etc.
Carbon Black (30%-35%)
Slag for construction.
Flammable Gas (8%-10%)
1. Recycled into the furnace to heat reactor instead of
coal/wood/oil/natural gas.
2. Storage the extra gas to restart the next batch.
Specification
| Item | Content |
| Raw materials | Waste tyre/rubber |
| Output | 45% fuel oil, 30% carbon black, 10% steel wire, 10%-15% syngas |
| Model | Reactor size | Capacity |
| HY1500*3000 | 1 T/batch |
| HY2200*5500 | 5 T/batch |
| HY2200*7500 | 7 T/batch |
| HY2600*6600 | 8 T/batch |
| HY2800*6000 | 9 T/batch |
| HY2800*6600 | 10 T/batch |
| HY2800*8000 | 15 T/batch |
| Remarks | Support customization |
| Reactor material and thickness | Q345R/Q245R/310S (Boiler plate/stainless steel) 16mm/18mm |
| Land area | 300-400㎡ (L30-40m*W10m) |
| Number of workers | 3-4 |
| Oil density and calorific value | 0.89g/cm³&44.30KJ/KG |
| Processing time and power | 10-24 hours. Averagely 15KW/h |
| Certification | CE, ISO, BV, SUV, SGS Oil Report, Emission Report, 11 patents |
Oil yield of different kinds of plastic
| Raw materials | Oil ratio |
| PP (Microwave oven food box/yogurt bottles, ect.) | 50%-75% |
| PS(fast food boxes/instant noodle boxes) | 50%-75% |
| PE(plastic film/plastic wrap) | 50%-75% |
| Plastic cable | 80% |
| ABS(engineering plastic) | 40% |
| Leftovers of paper | Wet 15-20%,Dry 60% |
| House garbage | 35%-50% |
| Plastic bags | 50% |
| Submarine cable | 75% |
| Rubber cable | 35% |
| Sole | 30% |
| Small tires | 45%-50% |
| Big tires | 35%-40% |
Features
1. High efficiency. The feeding port of the pyrolysis reactor is
1400mm, so the waste material doesn’t need pretreatment, it can be
put into the pyrolysis reactor directly with the auto feeder
machine.
2. High stability. The rollers are engineered underfeeding port and
oil outlet port which are external from the heating area to bring
perfect rotating balance and longer service life.
3. Energy saving: Non-condensable gas will go back to the heating
system for second burning as heating material, saving your heating
fuel.
4. High oil yield: Larger condensation area to ensure sufficient
condensation of oil gas into liquid oil.
5. Eco-friendly: The stainless steel deduster is filled with
ceramic filters inside, which brings it strong dust adsorption
capacity and a good dedusting effect.
6. High safety level: Equipped with Alarm, auto pressure releasing
device, anti backfire device, vacuum pump to ensure the machine
working smoothly.
After-sales Service:
1. With over 20 years of manufacturing experience, we are confident
to provide you with a quality pyrolysis plant at the most
reasonable price.
2. Very short delivery time. The delivery time is usually 15
working days.
3. We can send engineers on-site to guide installation and train
your workers, providing professional use guidance services.
4. One-year warranty, lifelong maintenance of the equipment,
providing professional use guidance services.
