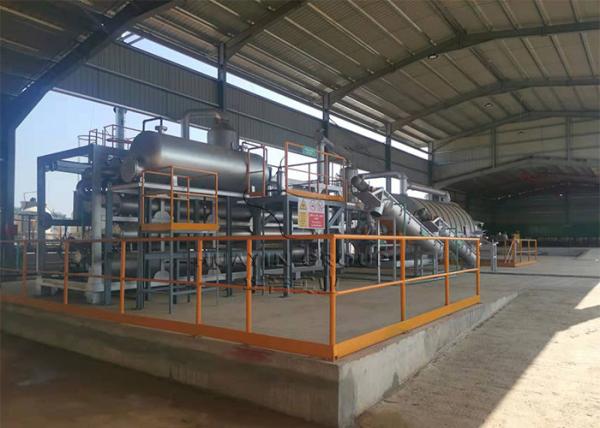

Convert Plastic Oil To Diesel Fuel Pyrolysis Plant Used Tyres
Pyrolysis Machine
Product description
The function of the waste tire/plastic pyrolysis plant is to
convert various kinds of waste tires like car tyres , motorcycle
tires, bicycle tires, and OTR tires , plastic scrap to fuel oil,
carbon black, steel wire, and syngas. Due to the advantages of
environmentally friendly, energy-saving, high safety level, and
large profit of this equipment, it is widely used for the treatment
of waste rubber and plastic products.
Specification
| Model | HY-05 | HY-08 | HY-10 | HY-15 |
| Raw material | Waste rubbers/tyres/plastic |
| Output product | 45% fuel oil, 30% carbon black, 10% steel wire, 10%-15% syngas |
| Daily Handling capacity | 5 tons | 8 tons | 10 tons | 12 tons |
| Machine dimension(mm) | D2200*L5500 | D2600*L6600 | D2800*L6600 | D2800*L8000 |
| Landing Area | 200m2 | 250m2 | 300m2 | 350m2 |
| Working pressure | Normal pressure |
| Main engine rotating speed | 0.4R /min |
| Power | 15KWH |
| Cooling Mode | Circle Water |
| Heating Mode | Direct |
| Oil Yield | 40%-50% |
| Noise dB (A) | <=85 |
| Working Mode | Batch type |
Operation Process
1: Feeding. Feed tires into reactor manually or with auto feeder;
2: Preheating. Waste tyres will be melted under high temperatures
and oil gas comes out.
3: Oil-producing. Oil gas goes through the cooling system and is
cooled down into liquid fuel oil; Some oil gas that can not be
turned into liquid oil will go back to the heating furnace for
second burning.
4: Cooling. After the oil processing is finished, leave the plant
for cooling.
5: Carbon black discharging.
6: Pulling out steel wire.
Main features
| Our advantage |
| Reactor material | Adopt Q245R/Q235R high pressure and temperature resistance steel
plate to ensure longer service life. For some special raw
materials, we use a special steel plate. |
| High efficiency discharging | Adopt screw conveyor discharging device, discharge carbon black in
sealed condition, no pollution, and save labor and time. |
| Integrated condensing device | All of the condensing parts have been installed together before
delivery from the factory, saving installation time and ensuring
welding quality |
| Auto feeding system | Auto feeder machine to feed raw material automatically, save labor
and time. |
| Energy saving | The inner reactor body and outside insulation cover have good
airtightness, avoiding heating loss and saving fuel. The combustible gas (that cannot be further cooled down into fuel
oil )will be recycled into the furnace for heating the reactor,
maximizing resource utilization. |
| Valves | All of the valves use stainless steel. |
| Non-pollution | Adopt 3 layers of ceramic packing dedusting device and water spray,
finally, no black smoke discharged out. SGS emission report
provided. |
| Safety devices | Alarm, auto pressure releasing device, anti backfire device, vacuum
pump to ensure the machine working smoothly. |
Output product and usage
---Fuel oil (50%-75%)
1. The main product - fuel oil produced by waste pyrolysis machine
is widely used for industrial and commercial purposes. This fuel
oil is a kind of good heating fuel that can be applied for boiler
factories, cement factories, glass factories, steel mills, etc.
2. It also can be refined to diesel by the distillation machine.
The distillation diesel can be used for diesel engines.
---Carbon black (30%-35%)
1. It can be pressed into pellets for use in industrial heating.
Pellets are a good alternative to coal as their calorific value is
equivalent to that of coal.
2. It can be ground and refined into different standards.
Flammable Gas (8%-10%)
1. Recycled into the furnace to heat reactor instead of
coal/wood/oil/natural gas.
2. Storage the extra gas to restart the next batch.
After-sales Service:
1. Based on customers’ requests and budgets, we help you make the
most economic solutions.
2. Providing a Turnkey project.
3. Engineers are available to go overseas for plant installation,
test the machine, and train workers.
4. One year warranty for the main reactor of pyrolysis machines and
lifetime maintenance for complete machines.
