Automatic Fully Continuous Feed Waste Plastics And Tyre Pyrolysis
Plant Production Line
Product description
The function of the waste tire/plastic pyrolysis plant is to
convert various kinds of waste tires like car tyres , motorcycle
tires, bicycle tires, and OTR tires , plastic scrap to fuel oil,
carbon black, steel wire, and syngas. Due to the advantages of
environmentally friendly, energy-saving, high safety level, and
large profit of this equipment, it is widely used for the treatment
of waste rubber and plastic products.
Specification
| SPECIFICATIONS FOR 25 TON CONTINUOUS WASTE TIRE PYROLYSIS MACHINE |
| Reactor | Raw materials | Q345R boiler plate | S310 stainless stee |
Main performance parameters | Capacity | 25~30 tons per day |
| Voltage | 380V | 50hz |
| Electric power consumption | KW | 11 |
| Alternative fuel type for start up | Natural gas/heavy oil |
| Plant minimum area occupied | 45 meters length, 15 meters width, 8 meters height |
| Maximum temperature of oil gas | 200 ℃ |
| Required utilities | Initial cooling water supply Electric power supply |

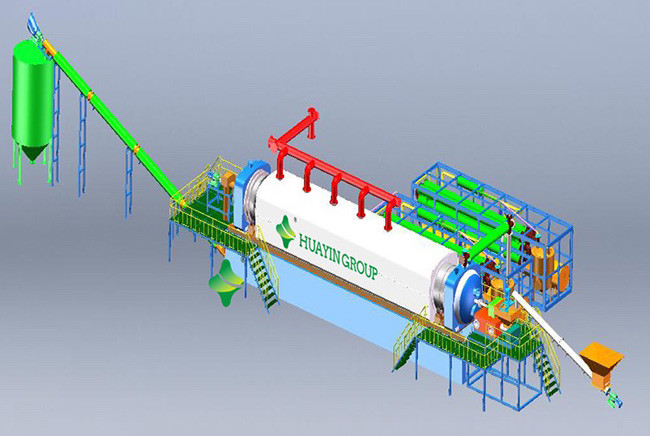

THE HY-30 continuous pyrolysis system can be installed into metal
frames size of 40 feet HQ container, designed for controlled
thermal decomposition process of hydrocarbon-based materials
utilization.
The plant is installed outdoors under the shed, the plant includes
the following assemblies:
Pyrolysis assembly
Condensation assembly
Control system equipped with safe start devices
The plant is controlled by an operator in manual or automatic mode
from the operator’s touch screen. Process data is controlled and
monitored by various instruments and a control system. Safety
interlock system monitoring deviations from main process parameters
ensures safe operation of the plan and long life of the equipment.
The plant is supplied with an air cooling system that cools media
(cooling water)
HUAYIN pyrolysis technology
1) Industrial batch type, different capacity from 1ton to 15ton per
batch.
2) low consumption, high oil yield, and quality, continuous and
steady operation of production.
3) Horizontal rotating reactor enables the waste material equally
heated and completely pyrolyzed to achieve high production
efficiency.
4) Anti-coking device, alarm, auto pressure releasing device, anti
backfire device, vacuum pump to ensure operation safe and reliable.
5) Combustible Gas recycling utilization technology, the
combustible gas can be used for heating, remaining heat can be
fully utilized, realized self-supply for pyrolysis process,
dramatically minimizing running cost.
6) Adopt 3 layers of ceramic packing dedusting device and water spray,
finally, no black smoke discharged out. SGS emission report
provided.
7) Support PLC system to achieve high automation production and
ensure operation under safety conditions.
8) Low requirement for manpower and clean production.
Our service
1. With over 20 years of manufacturing experience, we are confident
to provide you with a quality pyrolysis plant at the most
reasonable price.
2. Very short delivery time. The delivery time is usually 15
working days.
3. We can send engineers on-site to guide installation and train
your workers, providing professional use guidance services.
4. One-year warranty, lifelong maintenance of the equipment,
providing professional use guidance services.
