Garbage Pyrolysis Plant Fully Automatic Waste Tyre Pyrolysis Plant
Product description
The function of the waste tire/plastic pyrolysis plant is to
convert various kinds of waste tires like car tyres , motorcycle
tires, bicycle tires, and OTR tires , plastic scrap to fuel oil,
carbon black, steel wire, and syngas. Due to the advantages of
environmentally friendly, energy-saving, high safety level, and
large profit of this equipment, it is widely used for the treatment
of waste rubber and plastic products.
Specification
| Item | Content |
| Raw materials | Waste tyre/rubber |
| Output | 45% fuel oil, 30% carbon black, 10% steel wire, 10%-15% syngas |
| Model | Reactor size | Capacity |
| HY1500*3000 | 1 T/batch |
| HY2000*4000 | 3T/batch |
| HY2200*6000 | 5 T/batch |
| HY2600*6000 | 7 T/batch |
| HY2600*6600 | 8 T/batch |
| HY2800*6000 | 9 T/batch |
| HY2800*6600 | 10 T/batch |
| HY2800*8100 | 15 T/batch |
| Reactor material and thickness | Q345R/Q245R/310S (Boiler plate/stainless steel) 14mm/16mm/18mm |
| The whole plant weight | 15-45 tons |
| Land area | 300-400m2(L30-40m*W10m) |
| Number of workers | 3-4 |
| Processing time and power | 10-24 hours. Averagely 15KW/h |
| Certification | CE, ISO, BV, SUV, SGS Oil Report, Emission Report, 11 patents |
Layout design of the waste plastic to diesel production line
| Pyrolysis reactor | 1.The pyrolysis reactor offers an oxygen-free and high-temperature
working condition for pyrolysis process of feedstocks. 2.Manufactured with good material of Q245R boiler plate. 3.The rollers are engineered under the feeding port and oil outlet
port which is external from the heating area to bring perfect
rotating balance and long service life. 4.Safe operation. |
| Horizontal condenser | 1.Condensing process is divided into three stages. Pyrolysis gas
passes through horizontal condenser pipe x1, horizontal condenser
×3 and vertical condenser x1 in sequence, to maximize the
condensing effect. 2.Combustible gas (non-condensable gas) is collected by the system
and routed to the heating system as a fuel supply. It saves fuel
consumption meanwhile protect the environment.
|
| Deduster | 1.Water film deduster provides the basic emission control effect. 2.Easy maintenance.
|
| Carbon black discharge | 1.Carbon black is conveyed in a sealed condition to achieve pollution-free. 2.The screw conveyor is combined with condenser to help cool down
carbon black. 3.Easy storage and packing from screw conveyor.
|
| Auto feeder | 1.Hydraulic feeder can load more feedstocks since it can compact
feedstocks while feeding. 2.Less feeding time and more loading capacity than manual feeding. 3.No workers enter inside the pyrolysis reactor to ensure safe
operation. 4.Short internal time to start the next production batch.
|

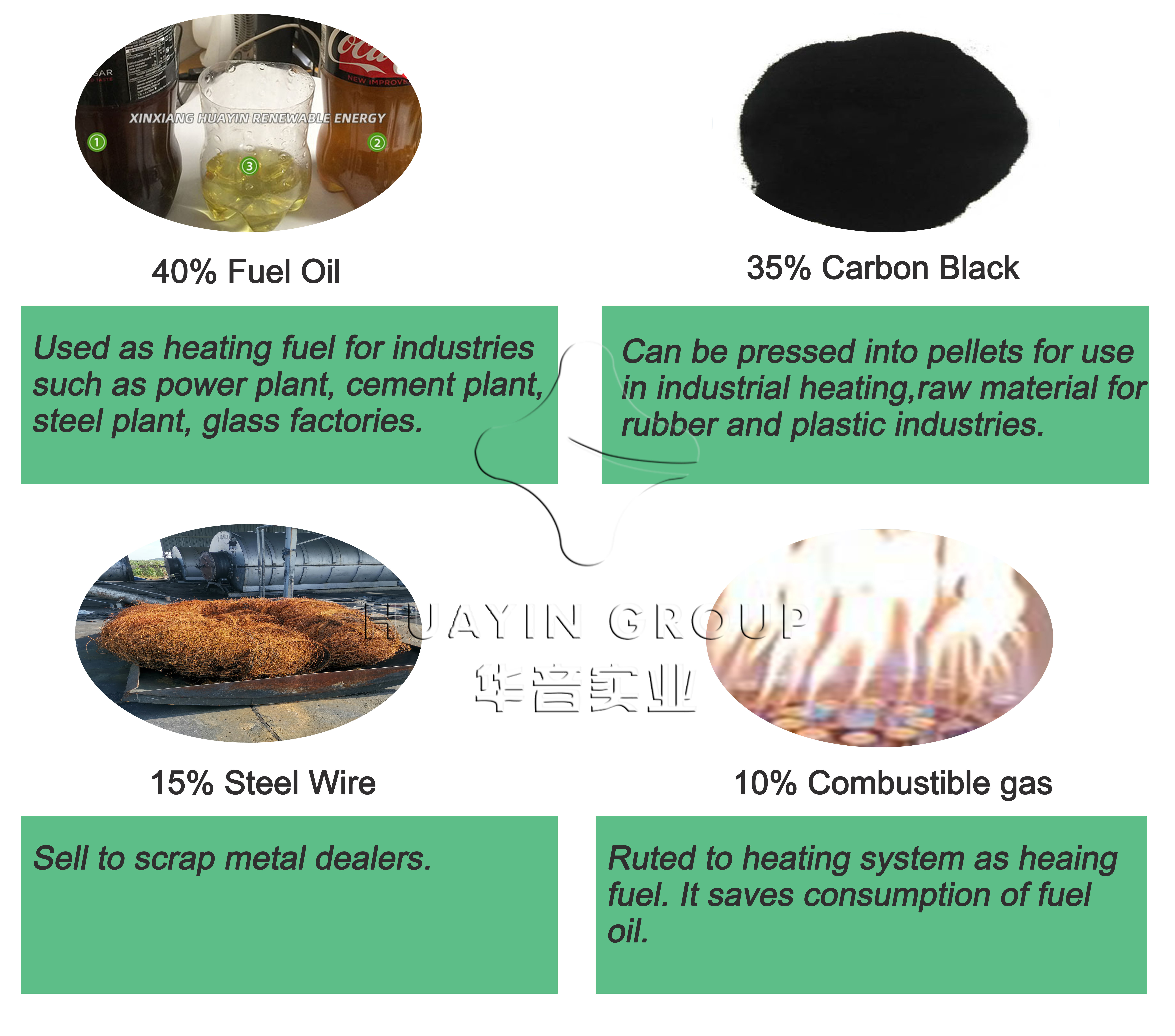

Output product and usage
Globle Cases
Our company
1. What is the price of one complete set of waste pyrolysis plants?
The price of the pyrolysis plant depends on the configuration, and
capacity, please contact us to get the latest quotation.
2. What payment methods do you accept?
A: We can accept T/T, L/C, Western Union.
3. Does waste pyrolysis plants pollute the environment?
With a powerful de-dusting system, the smoke will be
desulfurization and purified before being discharged out. SGS
emission reported provided.
4. How many countries have your machines been exported to?
HUAYIN equipment has been exported to over 80 countries including
Romania, Hungary, Turkey, Slovakia, Ecuador, Guatemala, Haiti,
Mexico, Peru, Canada, Jordan, UAE, Lebanon, Italian, Chile, Poland,
England, Thailand, Greece, Mexico, Benin, Indonesia, India,
Singapore, Russia, etc.
5. How long will it take to get the machine?
The delivery time is 15 -25 working days.
