Mini Waste Plastic Pyrolysis Plant Plastic To Fuel Production Line
Product description
With the increasing awareness of environmental protection in the
world, the harmless and resourceful disposal of waste tires/plastic
has become an important trend. The waste plastic /tyre recycle to
fuel oil machinery is designed to process the waste into valuable
products -industrial fuel oil, carbon black, and steel wire through
catalytic cracking technology. This green technology has created
good economic and social benefits.
| Output Products | Application |
Fuel Oil
(50%-75%) | 1. Used as the heating material and sell it to cement factories,
glass factories, ceramic factories, electric power factories, steel
making factories, boiler factories, etc.
2. Used in heavy oil generator for electricity generation.
3. Deep process it into diesel oil with our distillation plant,
color, and smell removal system, the final oil can be used in
trucks, tractors, etc. |
| Carbon Black (30%-35%) | Slag for construction. |
| Flammable Gas (8%-10%) | 1. Recycled into the furnace to heat reactor instead of
coal/wood/oil/natural gas.
2. Storage the exceed gas to restart the next batch. |
Advantages of Main parts of the pyrolysis plant
INSTALLATION FREE

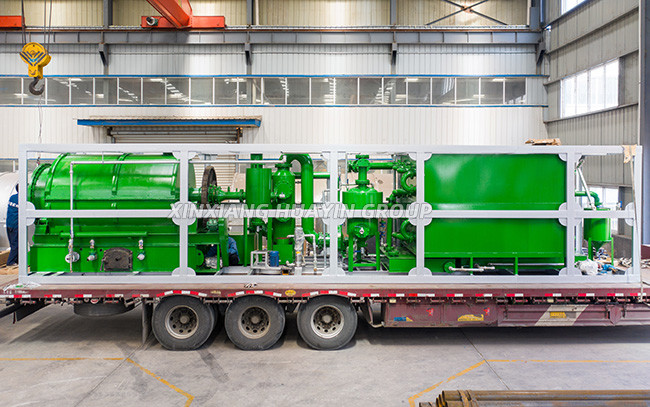

Model F750 adopts all-in-one design. All the parts are
pre-assembled within a frame structure. When you receive it, just
put it in position and connect water and electricity supplies, then
it can start working. No need to worry about installation anymore.

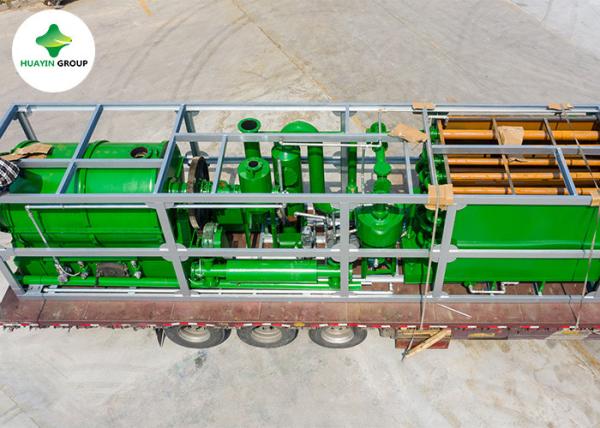

ALL-IN-ONE STRUCTURE
The main parts are pyrolysis reactor, heating system, de-duster,
condenser pipe, square box condenser, oil tanks, oil-gas separator,
oil-gas purification device, and syngas collector. All parts are in
one frame structure. The all-in-one structure makes installation,
transportation, operation and maintenance so easy.
Specification
Product Model
| Model F750
|
Technology
| Pyrolysis
|
Production Mode
| Batch Type
|
Overall Dimension
| L11.75 x W2.2 x H2.55 (m)
|
Total Weight
| 15 tons
|
Internal Dimension of Reactor
| Diameter 1.2m, Length 3m
|
Loading Volume
| 3.39m3
|
Loading Capacity
| 750kg
|
Power Voltage Total Power | 380v 11.1kW |
Our company
Xinxiang Huayin Renewable Energy Equipment Co., Ltd. is located in
Xinxiang City, Henan Province, which is specialized in
manufacturing waste tires/plastics to fuel oil pyrolysis machine
and waste oil to diesel distillation machine since 1993. our plants
have been exported to over 86 countries around the world . Huayin
has a technical R&D and service team composed of more than 30
experienced engineers, and has obtained many invention patents, CE,
SGS, ISO9001 and ISO14001 certifications.
Our main product : Batch and continuous waste tyre/plastic
pyrolysis plant , oil sludge pyrolysis plant , waste oil recycling
to diesel plant , aluminum scrap pyrolysis plant.
