Convert Plastic To Fuel Oil Machine Waste Plastic Pyrolysis Reactor
Product description
With the increasing awareness of environmental protection in the
world, the harmless and resourceful disposal of waste tires/plastic
has become an important trend. The waste plastic /tyre recycle to
fuel oil machinery is designed to process the waste into valuable
products -industrial fuel oil, carbon black, and steel wire through
catalytic cracking technology. This green technology has created
good economic and social benefits.
| Output Products | Application |
Fuel Oil
(50%-75%) | 1. Used as the heating material and sell it to cement factories,
glass factories, ceramic factories, electric power factories, steel
making factories, boiler factories, etc.
2. Used in heavy oil generator for electricity generation.
3. Deep process it into diesel oil with our distillation plant,
color, and smell removal system, the final oil can be used in
trucks, tractors, etc. |
| Carbon Black (30%-35%) | Slag for construction. |
| Flammable Gas (8%-10%) | 1. Recycled into the furnace to heat reactor instead of
coal/wood/oil/natural gas.
2. Storage the exceed gas to restart the next batch. |
Advantages of Main parts of the pyrolysis plant

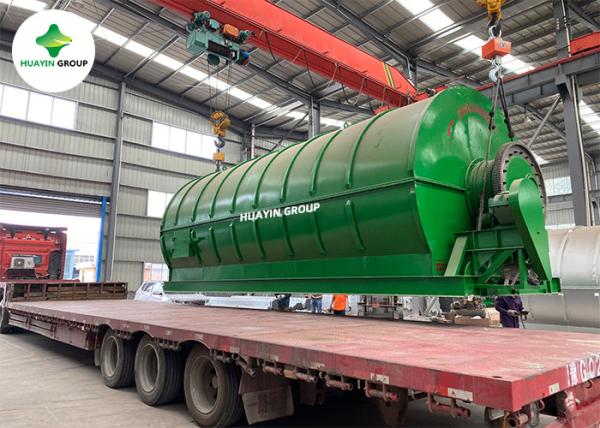

1. Pyrolysis reactor
1.The pyrolysis reactor offers an oxygen-free and high-temperature
working condition for pyrolysis process of feedstocks.
2.Manufactured with good material of Q245R boiler plate.
3.The rollers are engineered under the feeding port and oil outlet
port which is external from the heating area to bring perfect
rotating balance and long service life.
4.Safe operation.
2.Square box condenser
1.Square box condenser offers a long condensing distance of 120
meters in total. The pyrolysis gas produced from pyrolysis reactor
enters the internal condenser pipes connected in series. The
condensing process is fast and efficient.
2.The diameter of condensing pipe not only brings larger heat
exchange area, but also makes maintenance easier.
3.Combustible gas is collected by the system and routed to heating
system as fuel supply. It saves fuel consumption meanwhile protect
the environment.
3. Slag discharging device
1.Carbon black is conveyed in a sealed condition to achieve
pollution-free.
2.The screw conveyor is combined with condenser to help cool down
carbon black.
3.Easy storage and packing from screw conveyor.
Specification
| Item | Content |
| Raw materials | Waste tyre/rubber |
| Output | 45% fuel oil, 30% carbon black, 10% steel wire, 10%-15% syngas |
| Model | Reactor size | Capacity |
| HY1500*3000 | 1 T/batch |
| HY2000*4000 | 3T/batch |
| HY2200*6000 | 5 T/batch |
| HY2600*6000 | 7 T/batch |
| HY2600*6600 | 8 T/batch |
| HY2800*6000 | 9 T/batch |
| HY2800*6600 | 10 T/batch |
| HY2800*8100 | 15 T/batch |
| Reactor material and thickness | Q345R/Q245R/310S (Boiler plate/stainless steel) 14mm/16mm/18mm |
| The whole plant weight | 15-45 tons |
| Land area | 300-400m2(L30-40m*W10m) |
| Number of workers | 3-4 |
| Processing time and power | 10-24 hours. Averagely 15KW/h |
| Certification | CE, ISO, BV, SUV, SGS Oil Report, Emission Report, 11 patents |
Our company
Xinxiang Huayin Renewable Energy Equipment Co., Ltd. is located in
Xinxiang City, Henan Province, which is specialized in
manufacturing waste tires/plastics to fuel oil pyrolysis machine
and waste oil to diesel distillation machine since 1993. our plants
have been exported to over 86 countries around the world . Huayin
has a technical R&D and service team composed of more than 30
experienced engineers, and has obtained many invention patents, CE,
SGS, ISO9001 and ISO14001 certifications.
Our main product : Batch and continuous waste tyre/plastic
pyrolysis plant , oil sludge pyrolysis plant , waste oil recycling
to diesel plant , aluminum scrap pyrolysis plant.
