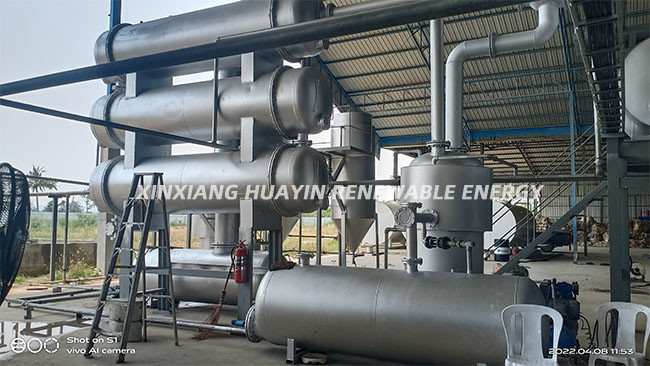

Profitable Project Batch Type Waste Tyre And Plastic To Fuel Oil
Pyrolysis Machine
Product description
With the rapid development of the plastics industry, the
application of plastic products is becoming more and more
extensive, but because plastics are not easy to rot and degrade,
this seriously affects the ecological environment of the earth. The
waste plastic pyrolysis refining equipment is not only
pollution-free to the environment, but also can recover energy
effectively.
Output product and usage
| Output Products | Application |
| Fuel Oil (40%-55%) | 1. Used as the heating material and sell it to cement factories,
glass factories, ceramic factories, electric power factories, steel
making factories, boiler factories, etc.
2. Used in heavy oil generator for electricity generation.
3. Deep process it into diesel oil with our distillation plant,
color, and smell removal system, the final oil can be used in
trucks, tractors, etc. |
| Carbon Black (30%-35%) | 1. Make it to pellet or briquette as heating material. |
| Steel Wire (10%-15%) | Sell to iron and steel factory directly. |
| Flammable Gas (8%-10%) | 1. Recycled into the furnace to heat reactor instead of heating
material. 2. Storage the excess gas to restart the next batch. |
Main advantages
Safety: Alarm, auto pressure releasing device, anti backfire device,
vacuum pump to ensure the machine working smoothly.
Oil-water separator: Its water sealing design ensures that oil and
gas are separated and combustible gas can not return to the
reactor.
Energy-saving:
The inner reactor body and outside insulation cover have good
airtightness, avoiding heating loss and saving fuel.
The combustible gas that cannot be further cooled down into fuel
oil will be recycled to the furnace for heating the reactor,
maximizing resource utilization.
The cooling water adopts a circulating mode, which is
pollution-free, no discharging, and recyclable.
Pollution-free: Adopt screw conveyor discharging device, discharge carbon black in
sealed condition, no pollution and save labor and time.
Fast installation: All of the condensing parts have been installed together before
delivery from the factory, saving installation time and ensuring
welding quality.
Auto feeder machine to feed raw material automatically, save labor and time.
Specification
| Model | HY-05 | HY-08 | HY-10 | HY-15 |
| Raw material | Waste rubbers/tyres/plastic |
| Output product | 45% fuel oil, 30% carbon black, 10% steel wire, 10%-15% syngas |
| Daily Handling capacity | 5 tons | 8 tons | 10 tons | 12 tons |
| Machine dimension(mm) | D2200*L5500 | D2600*L6600 | D2800*L6600 | D2800*L8000 |
| Landing Area | 200m2 | 250m2 | 300m2 | 350m2 |
| Working pressure | Normal pressure |
| Main engine rotating speed | 0.4R /min |
| Power | 15KWH |
| Cooling Mode | Circle Water |
| Heating Mode | Direct |
| Oil Yield | 40%-50% |
| Noise dB (A) | <=85 |
| Working Mode | Batch type |
FAQ
1. What is the price of one complete set of waste pyrolysis plants?
The price of the pyrolysis plant depends on the configuration, and
capacity, please contact us to get the latest quotation.
2. What payment methods do you accept?
A: We can accept T/T, L/C, Western Union.
3. Does waste pyrolysis plants pollute the environment?
With a powerful de-dusting system, the smoke will be
desulfurization and purified before being discharged out. SGS
emission reported provided.
4. How many countries have your machines been exported to?
HUAYIN equipment has been exported to over 80 countries including
Romania, Hungary, Turkey, Slovakia, Ecuador, Guatemala, Haiti,
Mexico, Peru, Canada, Jordan, UAE, Lebanon, Italian, Chile, Poland,
England, Thailand, Greece, Mexico, Benin, Indonesia, India,
Singapore, Russia, etc.
5. How long will it take to get the machine?
The delivery time is 15 -25 working days.
