Large Profit Plastic Rubber Pyrolysis To Diesel Oil Equipment Fast Installation

    Buy cheap Large Profit Plastic Rubber Pyrolysis To Diesel Oil Equipment Fast Installation from wholesalers

    Buy cheap Large Profit Plastic Rubber Pyrolysis To Diesel Oil Equipment Fast Installation from wholesalers
    • Buy cheap Large Profit Plastic Rubber Pyrolysis To Diesel Oil Equipment Fast Installation from wholesalers

    Large Profit Plastic Rubber Pyrolysis To Diesel Oil Equipment Fast Installation

    Ask Lasest Price
    Brand Name : Huayin
    Model Number : HY-10Ton
    Certification : CE ISO
    Price : USD35000-68000 per set
    Payment Terms : L/C, T/T
    Supply Ability : 220 sets per year
    Delivery Time : 15-25 work days
    • Product Details
    • Company Profile

    Large Profit Plastic Rubber Pyrolysis To Diesel Oil Equipment Fast Installation

    Large Profit Plastic Rubber Pyrolysis To Diesel Oil Equipment Fast Installation

    Description

    1. The waste tyre pyrolysis plant function is converting waste tyres into fuel oil, carbon black, steel wire, and syngas.
    2. Capacity from 1 ton-15ton capacity per batch. Support customization.
    3. Fast installation design & Bulk type design &Container design
    4. Environmental frendly: no black smoke and waste water discharged out.

    Large Profit Plastic Rubber Pyrolysis To Diesel Oil Equipment Fast Installation

    Specification

    ItemContent
    Raw materialsWaste tyre/rubber
    Output45% fuel oil, 30% carbon black, 10% steel wire, 10%-15% syngas
    ModelReactor sizeCapacity
    HY1500*30001 T/batch
    HY2000*40003T/batch
    HY2200*60005 T/batch
    HY2600*60007 T/batch
    HY2600*66008 T/batch
    HY2800*60009 T/batch
    HY2800*660010 T/batch
    HY2800*810015 T/batch
    Reactor material and thickness

    Q345R/Q245R/310S (Boiler plate/stainless steel)

    14mm/16mm/18mm

    The whole plant weight15-45 tons
    Land area300-400m2(L30-40m*W10m)
    Number of workers3-4
    Processing time and power10-24 hours. Averagely 15KW/h
    CertificationCE, ISO, BV, SUV, SGS Oil Report, Emission Report, 11 patents


    Our advantages

    Auto feeder


    1.Hydraulic feeder can load more feedstocks since it can compact feedstocks while feeding.
    2.Less feeding time and more loading capacity than manual feeding.
    3.No workers enter inside the pyrolysis reactor to ensure safe operation.
    4.Short internal time to start the next production batch.

    Horizontal condenser
    1.Condensing process is divided into three stages. Pyrolysis gas passes through horizontal condenser pipe x1, horizontal condenser ×3 and vertical condenser x1 in sequence, to maximize the condensing effect.
    2.Combustible gas (non-condensable gas) is collected by the system and routed to the heating system as a fuel supply. It saves fuel consumption meanwhile protect the environment.

    Deduster

    1.Water film deduster provides the basic emission control effect.
    2.Easy maintenance.

    Carbon black discharge

    1.Carbon black is conveyed in a sealed condition to achieve pollution-free.
    2.The screw conveyor is combined with condenser to help cool down carbon black.
    3.Easy storage and packing from screw conveyor.

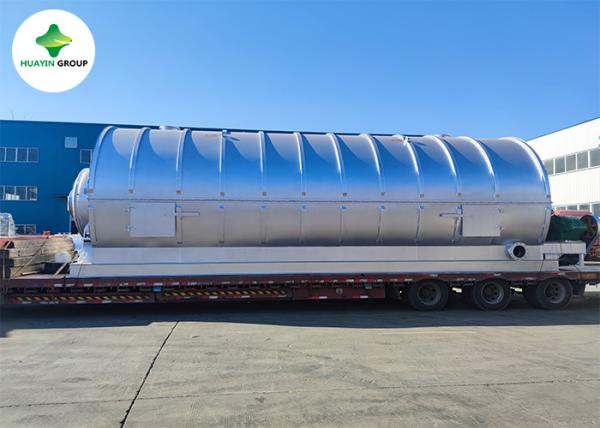

    Installation cases show

    Large Profit Plastic Rubber Pyrolysis To Diesel Oil Equipment Fast Installation

    Large Profit Plastic Rubber Pyrolysis To Diesel Oil Equipment Fast Installation

    Our company

    Xinxiang Huayin Renewable Energy Equipment Co., Ltd. is located in Xinxiang City, Henan Province, which is specialized in manufacturing waste tires/plastics to fuel oil pyrolysis machine and waste oil to diesel distillation machine since 1993. our plants have been exported to over 86 countries around the world . Huayin has a technical R&D and service team composed of more than 30 experienced engineers, and has obtained many invention patents, CE, SGS, ISO9001 and ISO14001 certifications.
    Our main product : Batch and continuous waste tyre/plastic pyrolysis plant , oil sludge pyrolysis plant , waste oil recycling to diesel plant , aluminum scrap pyrolysis plant.

    Large Profit Plastic Rubber Pyrolysis To Diesel Oil Equipment Fast Installation


    For more details, welcome contact us !
